Introduction
From the moment you press the power button, the security of your device begins with your boot firmware. It plays a critical role in establishing the trustworthiness of your device.
Dasharo is our open-source firmware distribution based on coreboot, which is a lightweight initial bootloader that initializes the hardware platform before passing control to a secondary bootloader. In Dasharo, the secondary bootloader is typically TianoCore EDK2, which is an implementation of UEFI.
One of the responsibilities of coreboot is to provide microcode updates for the processor. Microcode updates are critical for firmware security, as they contain fixes and mitigations for many classes of exploits, like Spectre and Meltdown.
On the UEFI side, there is UEFI Secure Boot, which is a method for cryptographically verifying OS bootloaders before executing them. One of the components of UEFI Secure Boot is a revocation database, which is called DBX. It contains hashes of revoked binaries, such as bootloaders with known security vulnerabilities like GRUB and the BootHole exploit, but also revoked signing keys certificates. Revoking certificates is crucial because it invalidates all binaries signed by that key, effectively blocking potentially many compromised tools or bootloaders with a single update, rather than having to blacklist each individual binary hash.
The firmware chain of trust starts with the earliest code executed (like microcode) and extends through each subsequent stage (coreboot, UEFI, bootloader, OS), with each stage verifying the next. A weakness in any link can compromise the entire system. In terms of the firmware trust chain, microcode sits at the very beginning, and UEFI Secure Boot sits at the very end, just before the OS starts to load. This is why updating these components regularly is crucial for platform security, and why we need automatic checks that ensure these components are up to date.
Manually tracking updates for numerous components across multiple platforms is error-prone and time-consuming. Different vendors release updates on varying schedules and through different channels. Automation, as implemented for microcode and DBX, addresses these challenges by ensuring consistency, reducing the risk of oversight, and freeing up developer resources for other critical tasks.
In this blog post we’ll explore how GitHub actions can ensure that these critical security components are always up-to-date, helping us deliver a secure firmware solution for our users.
The components

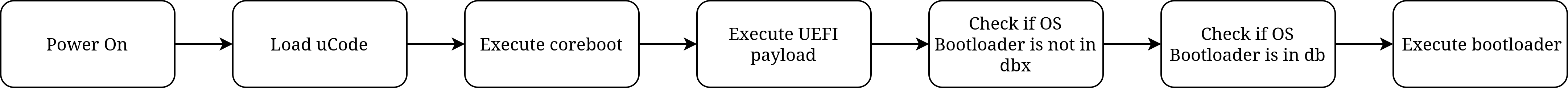

Here is an abridged version of the Dasharo boot diagram:
Both Intel Microcode binaries and the UEFI DBX file are publicly available, by Intel and the UEFI forum respectively.
Intel Microcode updates are available at Intel’s GitHub page: link.
From their readme:
The Intel Processor Microcode Update (MCU) Package provides a mechanism to release updates for security advisories and functional issues, including errata.
The microcode is typically provided by coreboot in a Firmware Interface Table (FIT). The FIT is a standardized structure within the firmware that allows the processor to locate and apply these critical updates seamlessly before executing any other firmware code. This means that the update is performed before coreboot has even had a chance to start.
In addition, modern CPUs often depend on ucode updates to function at all. Due to the amount of erratas, a processor may simply refuse to do anything if a microcode update is not provided. This highlights that microcode is not just for security patches but is often fundamental for basic CPU operation and stability on modern complex processors.
The OS is also able to load microcode updates, but due to how late in the boot process that is done, it might be too late to patch vulnerabilities that could be exploited during the early boot phases, or to address errata that affect the firmware’s own initialization. Applying updates as early as possible in the boot process, at the firmware level, provides the most comprehensive protection. Here are some examples of vulnerabilities patched by microcode:
- INTEL-SA-01139
- Insufficient input validation in UEFI modules, including XmlCli and CseVariableStorageSmm, may allow privilege escalation. Without this microcode update, an attacker with local access could potentially escalate privileges by exploiting flaws in UEFI module input validation.
- INTEL-SA-01166
- Improper Finite State Machines in hardware logic may allow Denial of Service
- INTEL-SA-01045
- Incorrect calculation in microcode keying mechanism may allow information disclosure via local access
UEFI DBX is available at UEFI Forum’s website: link. The page describes what the DBX updates are:
UEFI Revocation List files contain the, now-revoked, signatures of previously approved and signed firmware and software used in booting systems with UEFI Secure Boot enabled.
There is also a GitHub repository hosted by Microsoft, hosting the same files: link. For convenience, we will be using the Microsoft repository, as a git repo is easier to work with than a HTML page.
Interestingly, while this file should be the same between Microsoft’s GitHub and UEFI Forum’s website, it appears that they’re actually different:
|
|
This is because the file was recently updated on the GitHub repo, but the UEFI Forum website was not updated at the same time: commit. This lag highlights the importance of\ choosing a reliable and promptly updated source for critical security data, and why automation often benefits from sources with programmatic access and version history, like Git repositories.
Here is a list of some of the vulnerabilities that have been mitigated in the last few DBX updates:
- CVE-2022-21894 BlackLotus
- Persistent UEFI bootkit that could bypass Secure Boot
- CVE-2024-23593 Lenovo System Recovery Bootloader Vulnerability
- A buffer overflow in Lenovo’s recovery software could lead to Secure Boot bypass and arbitrary code execution
- CVE-2023-28005 Trend Micro Disk Encryption Vulnerability
- A vulnerability in Trend Micro’s Full Disk Encryption software could lead secure boot bypass and arbitrary code execution
The BlackLotus bootkit, for instance, was particularly dangerous as it could bypass Secure Boot and persist even after OS reinstallation, making its revocation via DBX updates essential.
The automation
Dasharo repositories are hosted on GitHub, which means we have access to GitHub Actions. GH Actions provide a convenient way to write CI workflows in YAML.
GitHub Actions was chosen for its tight integration with our codebase hosting, its declarative YAML syntax for defining workflows, and the wide range of community-supported actions available, such as the one used for creating pull requests.
Let’s start with the microcode workflow. This is the part that performs the check if the microcode updates are out of date:
|
|
The logic is easy to understand: checkout the microcode submodule, get the git revision, checkout the main branch, and check if the revision is different.
Now for the second part, the actual update:
|
|
If the previous step failed (the microcode is outdated), check out the submodule to the main branch and create a pull request. Using a Git submodule for the Intel microcode repository allows us to pin specific versions and track changes transparently within our own version control. The automation checks if our pinned commit diverges from the latest main branch of the upstream microcode repository, signaling a need for an update.

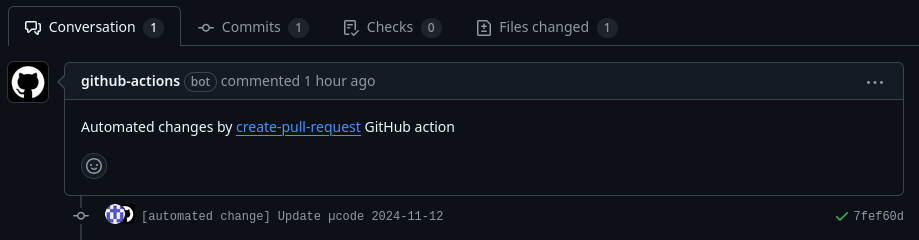

This is how an automatically created PR looks:
The UEFI automation uses the same ideas:
|
|
We see the same overall logic:
- Clone the secureboot objects repo
- Make a checksum of the current dbx
- Make a checksum of the latest dbx
- Compare them
- If the sums don’t match:
- update the file
- create PR
For the DBX, we directly fetch the latest binary from the Microsoft secureboot_objects repository. A checksum comparison is a straightforward and effective method to detect changes in this single-file artifact. This approach avoids the need to clone the entire repository if only the DBX file is of interest for this specific check, though we do clone it in the workflow for ease of access.
Once an automated pull request is generated, it undergoes the standard Dasharo review and testing process. This typically involves developers reviewing the changes, ensuring the updated components integrate correctly, and running tests on relevant hardware platforms before the PR is merged into the dasharo branch. This human oversight combined with automation ensures both timeliness and stability.
That’s pretty much it. These two GitHub workflows automate updates of both microcode and the revocation database.
Closing thoughts
Introducing these automatic checks makes our firmware not only more secure, but also more transparent. This transparency extends beyond just seeing the update status; it allows the community to understand our security posture, audit our processes, and even adapt these methods for their own coreboot or EDK2 based projects. As the repositories and their CI workflows are open, each user can see for themselves when the microcode and DBX were last updated, and build from the main branch themselves with a guarantee that these components will be up to date each time.

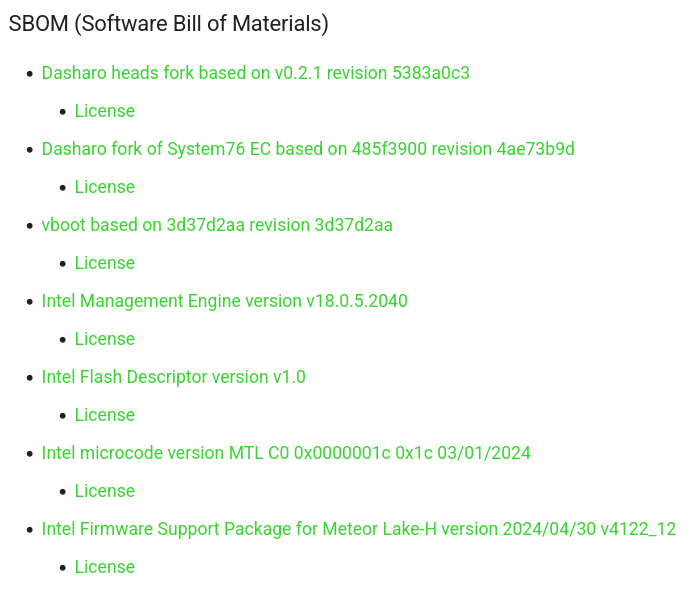

In contrast to many proprietary firmware solutions where update contents and schedules can be opaque, Dasharo’s open approach, exemplified by these automated CI checks and detailed SBoMs, aims to build a higher level of trust and empower users with more knowledge about the software running on their hardware’s deepest levels. Dasharo release notes contain detailed SBoM (Software Bill of Materials) sections describing exactly what microcode you’re getting:
We hope the introduction of these checks will make our firmware safer and more worthy of our users' trust.
