Introduction
We are slowly approaching the end of AMD Turin porting to coreboot. In the blog post, we will show how many other patches and bugfixes were required to properly run standard operating systems, such as Linux-based distros and Windows, on Gigabyte MZ33-AR1.
If you haven’t read the previous blog posts, I encourage you to do so, to catch up with the overall progress of porting.
ACPI porting
Advanced Configuration and Power Interface (ACPI) is a standard that defines an interface between the ACPI-compliant operating system and the platform firmware. It can be used to provide an abstraction layer for registers, controlling power management, and also providing system configuration information to the operating system. It is nearly impossible for modern platforms to run an operating system without ACPI and still provide complete functionality.

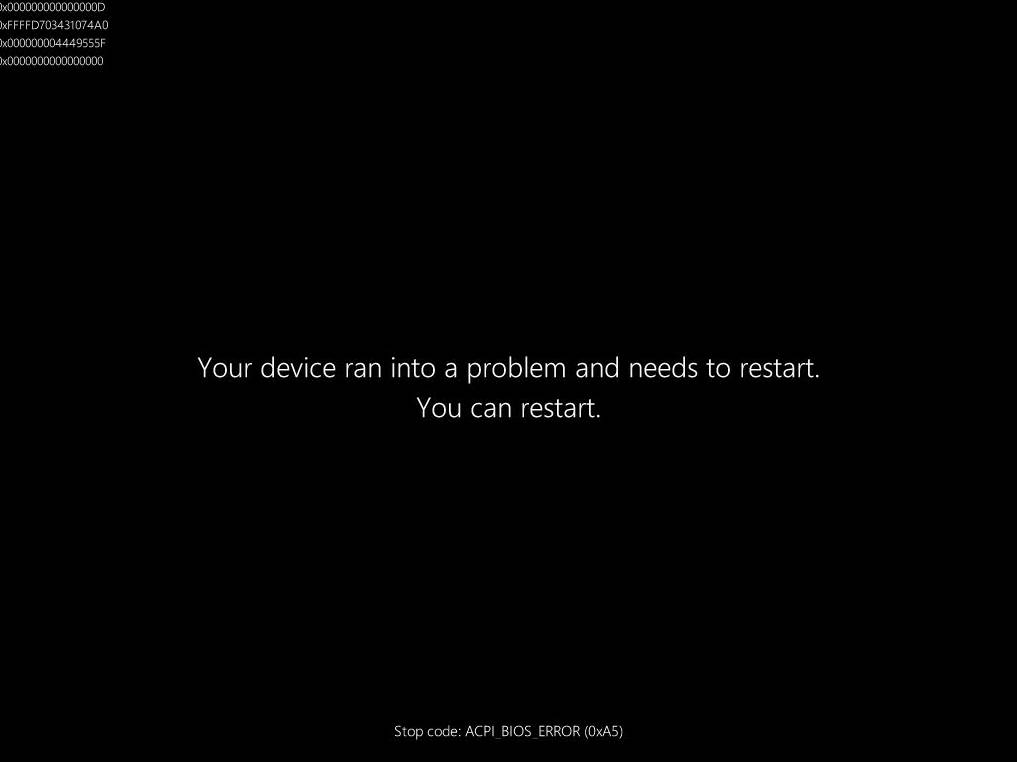

Microsoft Windows is especially picky about ACPI implementation quality. If certain information is missing in ACPI or is defined incorrectly, Windows will quite likely display an ACPI_BIOS_ERROR BSOD. This also happened in the case of booting Windows 11 on the Gigabyte MZ33-AR1:

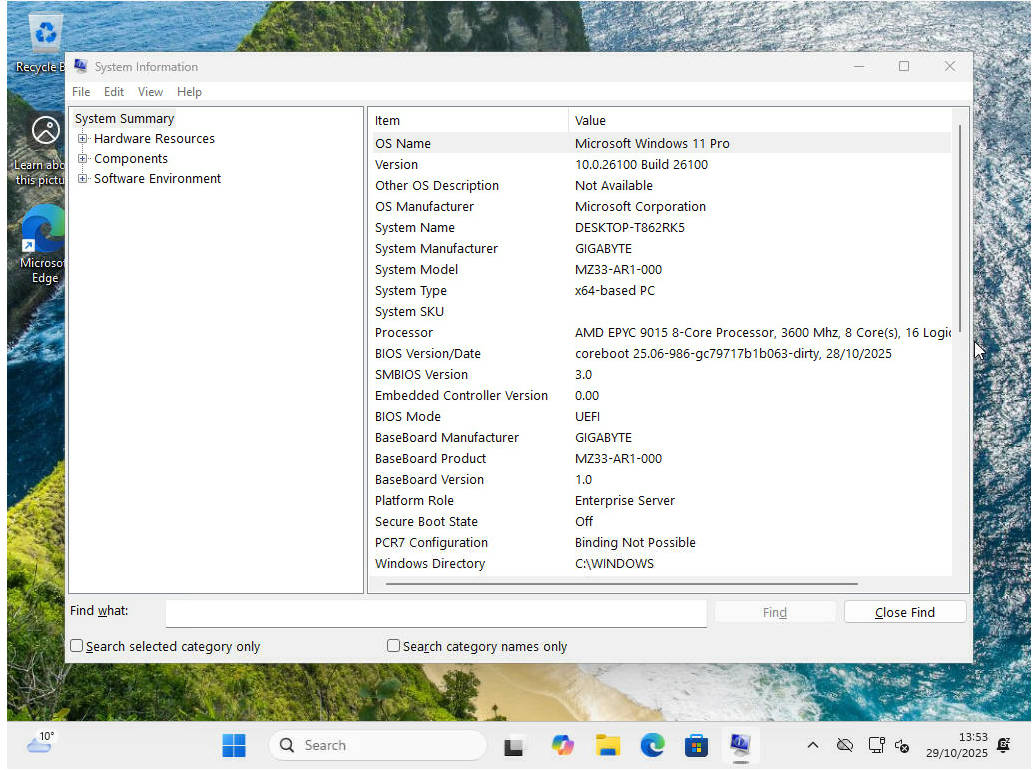

Thankfully, the set of fixes to the ACPI implementation solved the problem, and Windows could boot without major issues:
The Device Manager is also not complaining about issues with devices. There are only a couple of them that do not have a driver yet (however, the same situation is on the vendor BIOS).
In the very early attempts to boot Linux, we also observed ACPI errors in dmesg (if Linux succeeded in booting, of course):
|
|
This was all a result of incomplete or poor ACPI implementation (lack of interrupt routing information or incorrect LAPIC entries in the MADT ACPI table. Now, the number of errors and warnings is reduced to just a couple of lines:
|
|
Most of them are caused by the BMC Virtual CD-ROM device, which happens to reset very often, or by the Broadcom Ethernet, which reports a max timeout of 100 seconds. It seems to be the characteristic behavior of these devices because on the vendor BIOS, one can see identical messages in dmesg regarding the CD-ROM resets, CPU hog warnings, and Broadcom Ethernet max timeout.
Here is a complete list of patches with ACPI fixes that allow booting Windows and Linux without ACPI errors, grouped by logical sets of changes to subsystems:
-
IOMMU IVRS ACPI table:
- soc/amd/common/block/acpi/ivrs.c: Do not align 4-byte structures
- acpi/ivrs: Fill second EFR image value
- soc/amd/common/block/acpi: Simplify creating the PCI dev ranges in IVHD
- soc/amd/common/block/acpi/ivrs: Support multi-domain IOMMUs
- soc/amd/common/block/acpi/ivrs.c: Fix IVRS generation for multiple IOMMUs
- soc/amd/turin_poc/acpi: Describe PCI domains covered by IOMMUs
- soc/amd/common/block/acpi/ivrs: Add SoC hook to fill IVHD 40h
- soc/amd/turin_poc/acpi.c: Describe ACPI devices in IVRS IVHD type 40h
- soc/amd/turin_poc/acpi: Describe MPDMA devices
The IVRS ACPI table describes the IOMMU devices in the system and how the IOMMUs should be configured in the system. Until now, the common code responsible for IVRS ACPI table generation was capable of describing a single domain system with a single IOMMU. However, server systems, like Turin, have multiple domains and IOMMUs. The changes fix the way how IOMMUs are generated in the IVRS ACPI table to match the vendor BIOS IVRS table structure. Most importantly, IOMMU may cover more than one domain since Turin. It was the trickiest part to implement, requiring lots of SoC-specific hooks to be added to common code. Then the SoC hooks fill platform-specific structures in the IVRS table, like the MPDMA devices, or ACPI devices which are not discoverable, unlike PCI. There are also other minor fixes and improvements, that simplify the IVRS generation, but also new EFR fields that were added in the newer AMD IOMMU specification. All of these changes were needed to ensure the IOMMU will operate properly in the OS.
-
PCI interrupt routing:
- device/pci_device.c: Fix IRQ pin assignment for multi-domain systems
- amd/common/amd_pci_util: Extend the routing info to include bus number
- amd/common/block/pci/acpi_prt.c: Add SoC hook to get GSI base
- acpi/dsdt_top.asl: Add hook to enable routing in APIC mode
- soc/amd/turin_poc: Add hook for IOAPIC interrupt routing
- soc/amd/turin_poc: Implement PCI interrupt routing
Another field of ACPI that required a lot of work was PCI interrupt routing reporting. Again, because coreboot is mostly run on client devices, a lot of common code pieces have assumptions about PCI topology being limited to a single domain. Multiple PCI domains are mainly seen on servers, which are relatively new to coreboot. For that reason, the PCI interrupt routing API was not able to locate the parent bridges properly, because it assumed the system had only a single PCI host bridge (single domain). This assumption has propagated even further to AMD common code used to report PCI interrupt routing information. The data only recorded the PCI device and function number along with its IRQ. This led to all PCI devices being treated as if they belonged to the domain 0 with the host bridge on PCI bus 0. However, on the Turin platform, there is a total of 8 host bridges/PCI domains per CPU socket, with each host bridge starting at multiple of 32 buses or 16 buses (16 PCI buses per domain in two socket systems). It became necessary to distinguish devices belonging to different PCI domains/host bridges, so the code had to take the PCI bus numbers into account.
Another problem related to the multi-domain systems was the number of IOAPICs assigned to them. On AMD platforms, each PCI domain has a GNB IOAPIC (northbridge IOAPIC), so the global system interrupt number (GSI) for the given device had to be calculated based on the domain number the device belongs to. For that purpose, another SoC-specific hook had to be added and then the correct PCI interrupt routing could be provided by Turin SoC code. Some of the interrupt routing registers in the northbridge IOAPICs were not programmed properly, so a Pull Request was created to fix it: xUSL/Nbio/Brh: Fix interrupt routing and swizzling.
At last, to enable the interrupt routing through IOAPICs, the platform ACPI provides a method
_PIC, that is evaluated by OS, when it configured the interrupts. If OS decides to route interrupts in APIC mode, it calls the_PICmethod with argument equal to 1. The ACPI code generated by firmware may perform additional actions in the_PICmethod to configure the system for APIC interrupt routing mode. On AMD systems, the GNB IOAPICs (northbridge IOAPICs) need to be programmed to stop routing masked interrupts to FCH IOAPIC (southbridge IOAPIC), so effectively enabling the GNB IOAPIC operation. The_PICmethod needed a hook function, so that the APIC interrupt routing mode could be enabled on AMD systems properly. -
SoC-specific ACPI:
- soc/amd/turin_poc/acpi: Fill FADT fields per SoC requirements
- soc/amd/turin_poc/acpi.c: Create SLIT ACPI table
- mainboard/gigabyte/mz33-ar1: Set ACPI_FADT_LEGACY_DEVICES flag in FADT
- acpi/acpi_apic.c: generate MADT LAPIC entries based on current mode
- soc/amd/common/acpi: Add common CXL root bridge device template
- soc/amd/turin_poc/acpi: Describe CXL devices
- mainboard/gigabyte/mz33-ar1: Set system type to server
AMD has a special document that describes recommended values for ACPI tables for the Turin system. The above changes simply realize what the document is saying. But also, there is a small fix for a bug, which went unnoticed for a long time. The code responsible for MADT table generation has supported x2APIC for quite some time. x2APIC is a newer mode of operation of APICs, which allows the APIC ID to be greater than 255, and the interface is based on MSRs rather than MMIO. However, coreboot did not properly report the x2APIC mode of the CPU LAPICs in MADT. It assumed that if the LAPIC ID is greater than 255, the LAPIC runs in x2APIC mode, or in older xAPIC mode otherwise. But this does not have to be true. x2APIC mode could be active even with LAPIC ID lesser than 255, so it was necessary to look at the actual LAPIC mode currently enabled, rather than assume the mode based on LAPIC ID.
-
ACPI resource conflicts:
- soc/amd/common/acpi/lpc.asl: Report fixed base addresses
- soc/amd/common/acpi/lpc.asl: Report ESPI1 fixed resource
- acpi/acpigen_pci_root_resource_producer.c: Report TPM MMIO in domain 0
- acpi/acpigen_pci_root_resource_producer.c: Add VGA I/O resource to domain
One of the information conveyed by ACPI tables are the resources available for device use. There are two types of resources to report: resource producers and resource consumers. Consumers are the devices that “consume” given resource, i.e., they have some MMIO or IO range assigned to them to expose their configuration registers. Resource producers are devices that “produce” resources, i.e., specify resource ranges which can be consumed by subordinate devices. Typically, host bridges or PCI root buses play the role of resource producers. And every device under the given host bridge must consume only the resources defined by the given host bridge. Due to how TPMs are defined in coreboot, they usually belong to domain 0 (first host bridge in the system), so TPM MMIO has to be defined in domain 0 resource producer, otherwise Windows will report an error, unable to find the resources for TPM. A similar scenario happens with VGA resources. Although coreboot properly handled legacy VGA MMIO range (0xA0000-0xBFFFF), the VGA I/O ports (0x3B0-0x3BB and 0x3C0-0x3DF) were not considered at all. Instead, they were always assumed to be routed to the domain 0 where the southbridge lives (typically, most ports from the 0x000-0xFFF range are decoded by the southbridge). However, PCI bridges have a control bit that can explicitly enable the routing of the VGA I/O ports downstream of the bridge, so domain 0 will not always be the consumer of those ports (depending on where the primary VGA device is). And as usual for coreboot, the simple desktop and laptop devices have all their devices on the domain 0, because they are single-domain platforms. But servers? Obviously not, as we learned so far. It is possible that the VGA device will be in domain 0, but there is also a possibility that it will not be in domain 0. So, what happens in that case? The VGA I/O ports reported in domain 0 are not claimed by a VGA device present in a different domain, e.g. domain 5. Windows will gratefully tell us that something is wrong with the I/O resources on VGA, the same way it complained about TPM resources. So the solution here is to split the I/O resource producers for domain 0 to exclude VGA I/O if the primary VGA device is not on domain 0, then report the VGA I/O resource producer on the host bridge/domain, which has the VGA I/O port decoding enabled (set by coreboot during PCI enumeration).
Another bugfix was to report the fixed resources of the LPC device properly. We noticed that the SPI base address register is not readable when the ROM Armor feature is enabled on an AMD system. This would lead to reporting 0xffffff00-0x100000f00 range as reserved, which could cover the RAM. To avoid this, the code has been changed to report a fixed SPI base address programmed by coreboot. Modern AMD systems also have another fixed LPC resource for the ESPI bus, which is relative to the SPI base address. Every SPI base address-dependent resource would simply be misreported, so everything has been changed to a fixed address. Turin systems also have an ESPI1 bus resource, also relative to the SPI base address, so in a follow-up patch, ESPI1 has been reserved as well using a hardcoded address.
-
AMD P-state ACPI structures:
The CPPC is an ACPI structure reporting the CPU registers and frequency values for controlling CPU P-states. We noticed that the amd_pstate driver in Linux complained about a lack of
_CPCobjects and could not load properly, despite the fact that CPPC was supported. Common code in coreboot already had an implementation of CPPC structures creation. However, it required the hooks to provide some frequencies. Those frequencies could be provided only by OpenSIL, by querying SMU (System Management Unit). But, the SMU did not respond with any values, unless we have added a minimal SMU initialization with CPPC feature enabling. It was added in the Pull Request updating OpenSIL to Turin PI 1.0.0.7. More about this Pull Request later.
We did not go through all of the changes separately. If you are curious what has been changed and why, I encourage you to look into the links and read commit messages. The above list of patches fulfills the requirements of the milestone:
- Task 5. Platform-feature enablement - Milestone a. Turin-specific ACPI tables
As you may suspect (or not), these changes alone are not sufficient to boot the OS reliably. The blog post is also about bugfixes, so it is time will dive into them right now. Those bugfixes complement the ACPI changes to allow the OSes to run. One should understand that modern server platforms are relatively new in coreboot. Not so recently coreboot was mainly running on client devices such as laptops, desktops and SBCs. Also it should be noted that coreboot never offered value-added features like vendor BIOSes, nor OpenSIL is a complete rewrite of fully-featured AGESA. OpenSIL is just a minimal rewrite of core x86 initialization required to boot the platform. It doesn’t fully support advanced hardware features.
Bug fixes
Every plan, even the best plan, will not predict every minor detail or issues that can pop up unexpectedly. There are always unknown unknowns. With every port and every experience, we’re getting better. The experience is to leave enough buffer and margin for those circumstances, like the following milestone:
- Task 6. Validation & stabilization - Milestone a. Cross-OS boot & bugfix campaign
The list of patches with bugfixes is also long. We will not dive into each of them, and as mentioned previously, I encourage you to look into the links and read commit messages. I will explain a little bit more about the most critical bugs.
-
AMD CCX initialization:
- amd/microcode: Add API to obtain address on microcode update block
- vendorcode/amd/opensil/turin_poc: Pass microcode pointer to OpenSIL
- vendorcode/amd/opensil/Makefile.mk: Add 0x prefix for BIOS address
CCX means a core complex, a unit in CPU structure gathering cores and threads that share L3 cache. OpenSIL performs CCX initialization, in other words, the CPU cores initialization. This process requires certain information to be passed from host firmware to OpenSIL, like: microcode address and the address of the reset vector/bootblock module. The former required a new API to be added to locate an appropriate microcode for the CPU, which could be later used to obtain the address of the microcode and pass it to OpenSIL. When OpenSIL performed CCX initialization, it used the microcode address to perform a microcode update on all cores.
Secondly, the reset vector address or bootblock module address is needed by OpenSIL to determine where the non-BSP CPU cores will start fetching the code. So that OpenSIL can install its own reset vector with early CPU initialization. This reset vector address is dependent on the host firmware, i.e., where the host firmware will place its bootblock in flash and report it in the PSP directory. This address is configured at the OpenSIL build time using Kconfig. coreboot build system patches the OpenSIL Kconfig to provide the bootblock address used by the CCX IP module. However, the patching did not properly convert the address. The coreboot’s OpenSIL Makefile used printf without 0x prefix to convert the integer address to hex, which could cause the Kconfig system and OpenSIL to interpret it as a decimal integer. And that could cause the OpenSIL reset vector to be set up at an incorrect address, leading to hangs in CCX initialization.
-
TPM measured boot:
- soc/amd/common/block/cpu/noncar: Add missing TPM_LOG region in memlayout
- security/vboot/Makefile.mk: Fix building vboot lib with OpenSIL
- soc/amd/common/block/cpu/noncar: Add support for bootblock CRTM init
- amdblock/lpc: Add SoC hook to set up SPI TPM decoding
- soc/amd/turin_poc: Add SPI TPM SoC-specific initialization
- amdblocks/lpc: Avoid decoding already stored resources to eSPI
OpenSIL is not a fully featured rewrite of AGESA, which is why it is important to make the already available security features work, such as TPM and measured boot. There are not many AMD platforms with discrete SPI TPMs (maybe even none). Most AMD devices in coreboot are Chromebooks, which have their own TPM in a Google security chip. For that reason, the support of discrete SPI TPMs for AMD platforms required some work. First of all, the measured boot option was not buildable with OpenSIL, because it required crypto libraries provided by vboot. Due to mixed absolute and relative include paths added to environment variables by OpenSIL and other Makefiles, the vboot library failed to build. The second problem was the missing memory area reserved for early TPM event logging. For some reason, it was not present in the coreboot stage memory layout. Or maybe the measured boot was never enabled on any modern AMD platform in coreboot. This area stores the measurements before the TPM initialization happens in the ramstage (typically).
Another result of the measured boot never being used on modern AMD platforms was the lack of bootblock CRTM initialization. It always ended up in failure, because it was mocked to return a failure (simply not implemented). Thus, we added a proper implementation of CRTM initialization for AMD platforms that start execution from RAM memory.
Last but not least were the SPI TPM communication issues. The TPM communication was being disrupted at various stages of booting coreboot on Turin system:
- before first OpenSIL call in ramstage - NOT working
- after first OpenSIL call and before device init in ramstage - working
- after TPM init during device init phase in ramstage - NOT working
As we can see, there was a brief moment where the TPM was functional, because OpenSIL programmed some bits in silicon that made it work, and coreboot did not manage to break it yet… So the fix is also divided into two pieces. First, bringing the Turin-specific SPI TPM configuration to coreboot, to make TPM work beginning with the bootblock stage using a freshly added SPI TPM setup hook. Second, stop coreboot from breaking TPM communication. It occurred that the common AMD ESPI driver tried to enable TPM MMIO decoding to the eSPI bus. But wait, the TPM lives on the SPI bus, so we have to prevent that. Otherwise, the TPM traffic will go to the wrong bus.
With all the above changes, the measured boot with the discrete SPI TPM started to work properly across all coreboot stages.
-
SPI controller support:
- amdblocks/psp_efs: Add Genoa and Turin support
- drivers/spi/spi_flash: Add proper support for 32bit address mode
- soc/amd/common/block/spi: Add support for 32bit address mode
- soc/amd/turin_poc: Select SOC_AMD_COMMON_BLOCK_SPI_HAS_32B_ADDRESS_MODE
SPI controller support is important if we wish to store any persistent data during firmware execution, like variables. For example, the UEFI payload requires UEFI variables to operate properly (although they do not have to be necessarily persistent). Without a proper back-end to write to flash in coreboot, we would not be able to implement any runtime configuration options. There were two problems affecting the operation of the SPI controller. First, there was a lack of support for PSP EFS configuration for Genoa and Turin CPUs. EFS (Embedded Firmware Structure) is a structure that lives under fixed addresses in flash. It is probed by PSP before the main CPU starts to program the SPI controller speeds/frequencies. Without it, the SPI speed settings could be incorrect or simply undesired.
The second problem was the flash bigger than 16MB, which required a 32-bit addressing mode to access the whole flash. Typically, the flash is 16MB on x86 systems, because it is the size limit of flash that can be mapped under 4G. However, due to the increasing footprint of firmware code and the need to support multiple processor families, AMD created a concept of flash pages. Each flash page is 16 MB in size and can support one family of processors, i.e. contains a different firmware build for a different processor. That way a 32MB flash can have two 16MB images supporting both Turin and Genoa processors. Now, to handle such a big flash properly in coreboot, the SPI driver has to talk to SPI using 32-bit addressing mode. This mode usually uses different command bytes, and naturally, the number of bytes sent along with the command differs (24-bit addressing uses 3 bytes for address, while 32-bit addressing uses 4 bytes for the address. So the SPI driver has been updated with new commands to properly handle 32bit addressing mode. But the SPI driver is only assembling the data for commands to be sent via SPI controllers. The SPI controllers also need some configuration to treat those commands as 32-bit addressing mode commands. It was necessary to implement additional logic in the common AMD SPI controller driver to support 32bit addressing mode. Or rather, the SPI controller on the AMD Turin system was automatically assuming 32-bit addressing mode if the flash size was bigger than 16MB. The SPI driver in coreboot was not aware of it and sent 24-bit addressing mode commands, which were not interpreted properly by the SPI controller. This resulted in SPI reads and writes to hit the wrong addresses in flash. Finally, the new option for handling 32-bit address mode could be selected by Turin Kconfig, completing the set of fixes for SPI flash. With this, the SMMSTORE started to work properly, and the UEFI Payload UEFI variables were functional.
-
64-bit PCIe MMCONF:
- soc/amd/common/block/pci/amd_pci_mmconf.c: Support 64bit ECAM MMCONF
- soc/amd/common/block/smn: Add simple SMN I/O accessors
PCI Express MMCONF is a mechanism for accessing the PCI Express device configuration space via MMIO rather than regular 0xcf8/0xcfc I/O cycles. This is currently the standard way of configuring the PCI devices. However, on modern AMD systems, this mechanism needs a couple of quirks to work correctly. Initially, the base MMIO address was configured solely by programming a CPU MSR. But on the Turin system, there is a pair of registers that specify this MMIO address as well. These registers are used to make the SoC route those PCI configuration cycles properly across the data fabric. Initially, during the first phases of coreboot development for Gigabyte MZ33-AR1, we could not get PCIe MMCONF to work unless the address was set identically to the vendor BIOS. Unfortunately, this address was above 4GB boundary (so did not fit in 32-bit space). For that reason, we had to make the code support 64-bit MMCONF address. The final solution to select an arbitrary MMIO address for MMCONF was to reprogram the pair of registers responsible for routing the MMCONF cycles on the data fabric. For that purpose, we needed the simple System Management Network Accessors (SMN) using PCI I/O ports, because MMCONF may or may not be functional. Using these accessors, it was possible to reprogram the MMCONF decoding register pair (see
df_set_pci_mmconfin this patch). With these changes, it was possible to use the MMCONF address selected by coreboot Kconfig without issues. -
MTRR programming:
Programming MTRRs plays a crucial role in how the CPU sees the memory space. Some ranges must be uncacheable (like MMIO) and some should be cacheable with writeback (regular RAM). Setting different caching attributes in MTRRs has a huge performance impact. Imagine setting regular RAM as uncacheable. It dramatically slows down the CPU due to the CPU<->RAM bandwidth bottleneck. To speed up the firmware execution, coreboot sets up caching of the flash memory-mapped area, so that the code is fetched faster from the flash. However, this caching often causes huge fragmentation of the memory space, leading to increased use of MTRR registers. Sometimes, caching the flash is impossible because there are insufficient MTRRs to cover the whole address space. As a result, coreboot may slow down, e.g., loading a bigger payload may take a couple of seconds, instead of less than a second. Also, the amount of installed RAM plays a huge role in determining the number of needed MTRRs. Thankfully, the x86 silicon designers came up with a couple of improvements to the process of MTRR calculation. We have a default caching type and AMD-specific TOM2WB (Top Of Memory 2 Writeback). The former one allows setting a default caching type for memory ranges not covered by MTRRs, so that the MTRR calculation algorithm may skip those memory ranges that would generate bigger fragmentation of the memory space and require more MTRRs. The latter mechanism is AMD-specific and simplifies the assignment of regular RAM cacheability. When TOM2WB is enabled, the whole memory above 4G up to the address programmed in the TOM2 (Top Of Memory 2) register is automatically and unconditionally treated as writeback (WB) cacheable. So any MTRRm that would need to describe that range as WB can be omitted. When there is a huge amount of RAM installed, this mechanism may save a lot of MTRRs. Because of the problem of insufficient MTRRs appearing on Gigabyte MZ33-AR1, when coreboot attempted to set up flash caching, it was necessary to add code that will take the TOM2WB into account and skip unnecessary MTRRs, to make space for the flash caching MTRR. With this change, loading of the payload has been sped up drastically.
-
IOAPIC ID configuration:
- arch/x86/ioapic.c: Support 8-bit IOAPIC IDs
- arch/x86.ioapic.c: Add Kconfig option to keep pre-allocated IOAPIC ID
- soc/amd/turin_poc/Kconfig: Select IOAPIC_PREDEFINED_ID
Each IOAPIC in the system must have a unique ID programmed to be distinguished properly and have the interrupt directed to it properly. In the old days, the IOAPICs had only 4-bit-wide IDs. However, modern systems, like AMD, support 8-bit IOAPIC IDs. So we had to enable 8-bit IOAPIC IDs in coreboot to avoid a situation where 8-bit IOAPIC IDs programmed by OpenSIL would be partially overwritten by coreboot. However, only the least significant 4 bits of the ID would be reprogrammed, leading to a situation where coreboot thought the IOAPIC ID is 0x4 (4 decimal), for example, but in reality it could be 0xF4 (244 decimal). To maintain the reference settings of Turin AGESA/OpenSIL, we also implemented an option to preserve the IOAPIC IDs that were programmed externally by silicon initialization modules. Then we selected this option in Turin Kconfig so that the IOAPIC IDs would be in line between coreboot and OpenSIL.
-
UEFI Payload build settings:
- payloads/external/edk2/Makefile: Configure AP wakeup in UEFI payload
- payloads/external/edk2/Makefile: Set SMBIOS to 3.0.0
There were two minor issues with the UEFI payload build configuration in upstream coreboot. First, there was a configuration option added to upstream EDKII, which controlled how the APs are started up in the EDKII CPU driver. For some reason, the default value of that option was not compliant with how x86 CPUs are started. So to make EDKII UEFI Payload detect and start all cores properly, it was necessary to configure the AP startup using standard INIT-SIPI-SIPI sequence. The second problem was the mismatch of the SMBIOS tables version created by coreboot and exposed later by EDKII UEFI Payload. This mismatch led to OS utilities, like Linux dmidecode, to parse the SMBISO structures incorrectly. Setting a matching SMBIOS version for EDKII UEFI payload fixes the problem.
-
SMBIOS memory information:
- lib/dimm_info_util.c: Handle 16-bit memory bus extension for ECC
- memory_info: Introduce new fields to memory_info structure
- drivers/amd/opensil: Add hook to populate CBMEM_ID_MEMINFO
- vendorcode/amd/opensil/turin_poc: Fill the memory_info data
Having human-readable information about RAM memory is important. SMBIOS is one of the sources of such information. The generic SMBIOS code in coreboot has support for generating the RAM memory information, but it requires input data from the platform code. Thankfully, OpenSIL provides all the necessary information coreboot needs. It just simply had to be parsed properly. We added a hook to coreboot’s OpenSIL driver so that any future mainboards and platforms with OpenSIL can implement the same mechanism. Turin also supports DDR5 memory, which introduces a couple of new fields that were not present yet in coreboot. To utilize the OpenSIL memory information to the maximum, we added those missing memory information fields to coreboot structures and fixed how the DDR5 ECC memory bus extension is treated. With these changes, the SMBIOS memory information structures were populated correctly.
-
Root bridge resources:
- coreboot_tables: Add new CBMEM ID to hold the PCI RB aperture info
- soc/amd/turin_poc: Fill the CBMEM_ID_RB_INFO
The way resources are assigned to root bridges is different on AMD than on Intel systems. Not all resources are discoverable by scanning all PCI devices under the given root bridge. EDKII PCI driver needs the PCI apertures to be detected properly. Usually, it is done by scanning the root bridges. However, it was proven insufficient for AMD server systems. For example, domain 0 devices may not always have devices with I/O resources, which may lead to a situation where I/O ports from 0x000-0xFFF The range will not be assigned to root bridge 0 in the EDKII PCI driver. As a result, the serial ports responding in that I/O range will stop working once the PCI driver configures root bridge attributes. To fix that problem, we have implemented parsing the data fabric registers to calculate the PCI root bridge apertures and expose them in new CBMEM tables. Thankfully, the EDKII UEFI payload already supported a mechanism of parsing PCI root bridge aperture information from the host firmware using a Universal Payload hand-off block (HOB). So we reused that HOB format in coreboot and simply pass it to the PCI driver in EDKII. With these changes, the PCI root bridge apertures were reported correctly, and all devices were functioning properly in the payload.
-
Flashrom support:
- sb600spi: Check if SPI BAR register has valid value
- sb600spi: Fix Promontory flash read of chips larger than 16MiB
Flashrom is a popular open-source utility for ROM/flash programming. When we obtained the Gigabyte MZ33-AR1 hardware, it quickly occurred that flashrom is unable to read the firmware flash on the platform. The reason was the ROM Armor protection being enabled, which caused the SPI base address register to return invalid data. Flashrom did not check the validity of the register and tried to map an incorrect MMIO address, which resulted in flash probe failure. To avoid that situation in the future, we added a check for the register value and printed an appropriate error message, instead of writing to a random address.
While accessing flash with flashrom was not possible on the vendor BIOS, it was viable with coreboot. But flashrom programmer supporting AMD chipsets and SoCs were not handling flash bigger than 16MB. Sounds familiar? When flashrom attempted to read the SPI on a modern AMD platform, it used the memory mapping mechanism. However, this mechanism can only work for flashes up to 16MB in size, due to legacy x86 flash memory mapping limitations. If the flash was bigger than 16MB, flashrom calculated the memory-mapped range as follows:
base=top 4G-flash size. For 16MB flash, the base would be0xff000000, which is still correct. However, for 32MB flash, the base would be0xfe000000. The space between0xfe000000and0xff000000is often used by different components in the system, e.g., HPET (0xfed00000), LAPICs (0xfee00000), SPI (0xfec10000), ACPI MMIO (0xfed80000), TPM (0xfed40000) and many others. It is basically a space reserved for things other than flash. Obviously, flashrom did not account for it and blindly mapped the hole0xfe000000-0xffffffffrange , thinking it was flash, and attempted to read it, which resulted in bus errors in Linux. The solution was to not use the memory mapping mechanism for flashes bigger than 16MB and use the old way using the SPI read command via SPI controller (a bit slower, but always works). With these changes, we were able to read and write the coreboot builds using flashrom on the Gigabyte MZ33-AR1. -
Updating OpenSIL to Turin PI 1.0.0.7:
According to one of the comments on OpenSIL GitHub, the Turin OpenSIL was developed based on the pre-production version of the Turin PI package 0.0.8.0. It means that the code lacked the most recent bugfixes and improvements from AMD in silicon initialization. We attempted to reduce the difference between the OpenSIL and the newest available Turin PI at the time of development (i.e., Turin PI 1.0.0.7). There were lots of default values set differently on the production version. We also found some missing register programming. The overall effect of this operation is not easily measurable, because the changes touch multiple IP blocks. However, certain changes added in that Pull Request solved one of the critical issues with SDXI devices (see below). We also added the SMU initialization required for the CPPC feature mentioned earlier. It is also important to note that the changes include recent security fixes for various vulnerabilities reported since the release of the Turin CPU.
-
Smart Data Accelerator Interface (SDXI):
The Smart Data Accelerator Interface devices were exposed by default by the OpenSIL. They caused a lot of IO_PAGE_FAULTs in IOMMU when running Linux with Xen hypervisor. It often resulted in a system hang or kernel panic. As SDXI is a bleeding-edge feature, it may not yet have good support in software or firmware. Especially that OpenSIL is a slightly feature-reduced reimplementation of AMD’s reference code (AGESA). Initially, we thought that missing SDXI initialization is the cause of problems Hiding the SDXI devices in this PR fixed the problem.
-
CPU bringup issue:
- arch/x86/ioapic.c: Add option to skip virtual wire mode programming
- soc/amd/turin_poc/Kconfig: Skip IOAPIC virtual wire mode programming
The FCH IOAPIC (southbridge IOAPIC) configuration was the main cause why we could not boot any bare metal Linux OS. For a long time, the interrupts arriving at the CPUs during the CPU bringup in the Linux kernel were causing memory corruption in the page tables mapping the CPU stack. It occurred that coreboot programming the southbridge IOAPIC to virtual wire mode was the cause of the problem. On the vendor BIOS, only the BSP local APIC was programmed to virtual wire mode, as the MP Specification says. Routing of PIC INTR through IOAPIC INT0 as a virtual wire is optional. And it seems that AMD systems do not like the IOAPIC being programmed in virtual wire mode. Thus, it was necessary to add an option to skip virtual wire programming and select it in the Turin SOC code. With these fixes, we could finally boot bare metal Linux reliably without hangs.
The last two issues (SDXI and CPU bringup) were the most critical bugs haunting us for weeks. Thankfully we came up with solutions to those, and now can boot Linux and Windows.
The above list of patches and pull requests fulfills the requirements of the milestone:
- Task 6. Validation & stabilization - Milestone a. Cross-OS boot & bugfix campaign
Summary
Throughout the whole process of porting a new microarchitecture, a lot of bugfixes and changes had to be made to coreboot to support a modern server properly. It would not be possible without AMD’s OpenSIL initiative. And also the NLnet Foundation, of course, for sponsoring the project. Huge kudos to them.
