Introduction
Dasharo v0.9.0 for the MSI PRO B850-P WIFI was released on July 30, 2026. This is a landmark release: it is the first open-source firmware for a modern AMD Ryzen desktop platform, built on coreboot and AMD openSIL for the Phoenix (Zen 4) processor family. While open-source firmware for AMD server platforms such as the Gigabyte MZ33-AR1 has existed for some time, consumer desktop platforms have remained out of reach until now.
If you have been following the development journey, all previous posts from the porting series are tagged PRO B850-P. The series started with USB, SATA, and PCIe bring-up in Part 1, progressed through openSIL integration, GFX bring-up, TPM support, fast boot, and cross-OS validation through Part 6.
If you have not read them yet, I highly encourage you to do so.
Features in v0.9.0
The release delivers initial Dasharo firmware support for the MSI PRO B850-P WIFI based on AMD Phoenix. The feature set includes:
- Initial support for the MSI PRO B850-P WIFI board based on AMD Phoenix (Zen 4)
- UEFI compatible boot interface with standard boot order and configurable boot options
- UEFI Secure Boot support

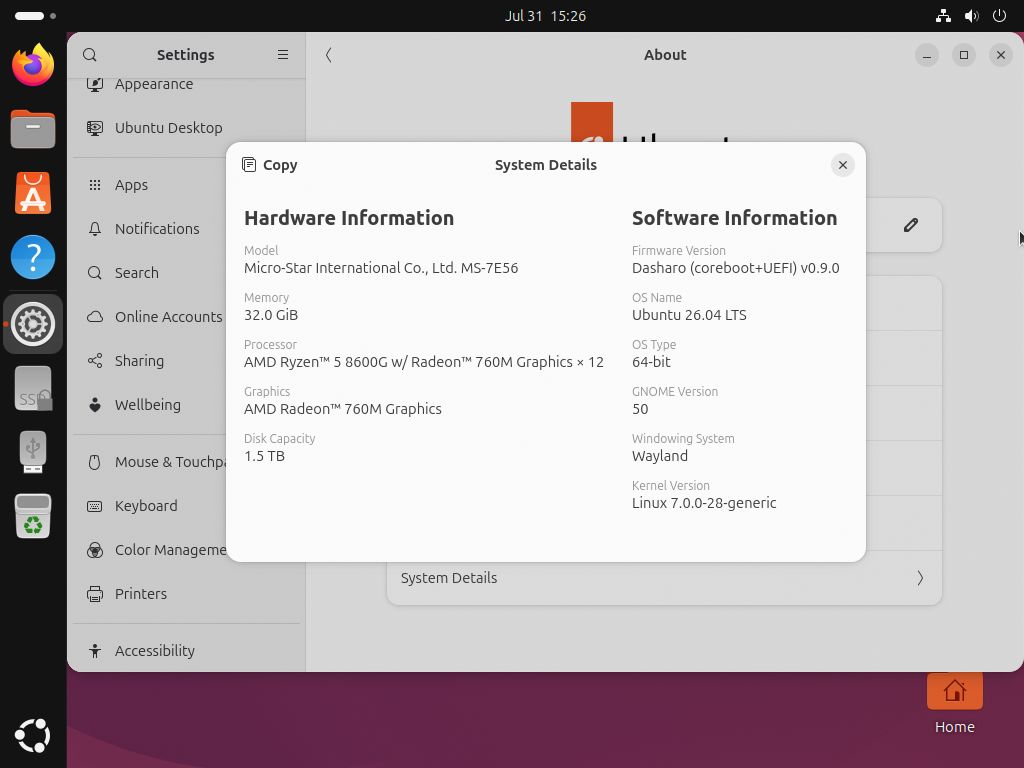

- Tested Ubuntu 26.04 LTS and Windows 11 25H2
- AMD fTPM support with TPM Measured Boot - full TPM 2.0 functionality through the AMD PSP without a discrete TPM chip
- SMM BIOS write protection with AMD ROM Armor 3
- Setup menu password configuration to protect unauthorized access to firmware setup
- USB stack and network stack disable options in setup menu
- TPM PPI support with UEFI variable backend
- TCG OPAL and SATA disk password support
- UEFI Capsule Update v1 support with Capsule on Disk
- Serial port console redirection
- Auto-detection of pre-installed OS boot entries
- AMD memory context save/restore support enabling fast boot on subsequent boots
- Quiet boot and Fast boot options
- EFI System Partition scanning to create boot options automatically
- EZ Debug LED support - DRAM and CPU LEDs indicate firmware initialization progress. VGA and BOOT LEDs are not currently used.
- AMD CPU temperature reporting via ACPI Thermal Zone
- Integrated SBOM for AMD PSP blobs, video and LAN drivers
Known issues in v0.9.0
The v0.9.0 release documents four known limitations:
-
UEFI Capsules do not survive resets. Only immediate Capsule on Disk (CoD) updates are supported. A warm reset during a staged capsule update will not complete the update. This is a limitation of modern AMD platforms where staged capsules are lost in RAM after reset. The UEFI Capsule Update topic will be broadly elaborated in a separate publication soon. Stay tuned! There is also a lot of activity around Capsule Updates on coreboot’s gerrit besides the Dasharo efforts.
-
Previous power state restoration does not work for the powered-off state. The ATX power state restore (S5 -> power-on when AC is restored) is not functional. Only the “always on” or “always off” options work reliably.
-
Ubuntu 26.04 with serial console occasionally halts during boot. Systems with serial console redirection enabled may experience intermittent boot hangs under Ubuntu 26.04. Disabling serial console redirection in the firmware setup menu works around the issue.
-
WiFi card intermittently disappears. The on-board WiFi adapter may occasionally not appear on the PCI device list during boot and is not visible in the operating system. A CMOS reset reliably restores brings back the WiFi card. Same issue occurs on the vendor BIOS.
Openness score
One of the metrics Dasharo tracks for each supported platform is the openness score: the fraction of the firmware image that consists of open-source code versus closed-source binaries. The formula used is:
(Dasharo size - Proprietary size) × 100 / Proprietary size
The Dasharo (coreboot+UEFI) v0.9.0 compatible with the MSI PRO B850-P WIFI,
compared to the vendor firmware image E7E56AMSI.2A92, shows a 79.1%
reduction in closed-source firmware code. See the full comparison
table. It
looks like the firmware based on coreboot and openSIL for a single processor
family reduces the closed source footprint by about 80% on AMD platforms.
Similar
result
has been achieved on Gigabyte MZ33-AR1.
| Metric | Value | Interpretation |
|---|---|---|
| Closed-source diff | -79.1% | Lower is better: -100% would be fully open-source |
| Data size diff | 167010300.0% | Data content varies, no preference |
| Empty space diff | +377.3% | Higher is better: more free space = smaller TCB |
The dominant contributor to the remaining closed-source portion is the AMD PSP (Platform Security Processor) firmware - silicon initialization blobs that the processor requires for bring-up and that AMD does not publish as source code. This structural constraint applies equally to all modern AMD and Intel platforms. The coreboot + openSIL + EDK II combination used in this release maximizes the open-source fraction. What remains closed is exclusively the silicon vendor firmware for which no open-source equivalent exists.
High percentage of data difference is a result of the tool not finding any data in the vendor BIOS. To avoid division by zero in the tool, it was assumed that the size of data is 1 in the vendor BIOS and the formula gave an absurdly high difference in data size.
HSI and boot time
The fwupd HSI score was presented in previous blog post in the HSI section.
The boot time vs vendor BIOS was also compared in the previous blog post.
Frequently asked questions
The release generated a number of questions from the community. Here are answers to the most common ones.
Is the AMD Ryzen 9 9950X3D supported? What is the current CPU support status?
The MSI PRO B850-P WIFI Dasharo port currently supports AMD Phoenix Zen 4
processors - these are the Ryzen™ 8700/8600/8500/8400/8300 Series processors
series AM5 CPUs (processors marked as Phoenix on the MSI CPU compatibility
list). The
Phoenix SoC is what AMD’s openSIL phoenix_poc branch targets, and that is
the openSIL revision used in this release. Any other processors are not
supported and will not boot.
The situation with Zen 4 3D V-Cache (X3D) variants such as the Ryzen 9 7950X3D is primarily a silicon compatibility question: the X3D die stacking does not change the openSIL initialization path in a way that would block support. However, none of Phoenix CPUs have 3D V-Cache, so processors with 3D V-Cache are not supported.
The Ryzen 9000 series (Zen 5 / Granite Ridge) uses a different SoC and is not
supported by the phoenix_poc openSIL branch. Supporting it would require AMD
to publish a corresponding openSIL branch for Granite Ridge, but it has not
happened as of this release.
Initially, the openSIL phoenix_poc was destined to support only mobile
processors. What 3mdeb did was an addition of Phoenix AM5 processors support.
If you are interested in the Raphael or Granite Ridge CPUs, feel free to
create issue on openSIL
repository and raise
interest in those CPUs. Possibly AMD will respond to the request if critical
mass is gathered. Be sure to join the Dasharo openSIL integration
status as
well. The more people will talk about openSIL, the more AMD may engage in
development of openSIL in the future.
What is the most powerful CPU currently supported?
The most powerful AMD Phoenix Zen 4 desktop CPU for the AM5 socket is the Ryzen 7 8700G (8 cores / 16 threads). Any Ryzen 8000 series AM5 processor should work with Dasharo v0.9.0, but validation has been performed only on a Ryzen 5 8600G. If you encounter issues with a specific processor, please report it on the Dasharo issue tracker.
To clarify on the Ryzen 9 9950X3D specifically: this is a Zen 5 processor (Ryzen 9000 series), not a Zen 4. It requires a different SoC supported by a different openSIL branch that is not yet publicly available.
Will memory encryption (SME/TSME) ever be enabled on consumer Ryzen?
AMD restricted memory encryption on non-PRO Ryzen processors at the PSP firmware level. While AMD has lifted this restriction for certain processors, they did not do that for Phoenix SKUs, as they did for Ryzen 9000. Whether and when that happens is AMD’s decision. We will not artificially block the feature on our side.
What about HEADS and TPM support? Do I need a discrete TPM chip?
No discrete TPM chip is required. The v0.9.0 firmware enables the AMD firmware TPM (fTPM), which is a TPM 2.0 implementation running inside the AMD PSP. It provides a full CRB interface and supports all standard TPM workflows including Measured Boot, BitLocker, Windows Hello, and platform attestation.
To support different TPMs such as discrete TPM module or Pluton fTPM, coreboot will need to have support for modifying APCBs too.
Heads is a coreboot+Linux payload focused on measured and verified boot. It is a separate payload from the EDK II UEFI payload used in this release and would require a dedicated porting effort for the MSI PRO B850-P. There is no HEADS support in v0.9.0, and it is not on the immediate roadmap. If this is important to you, please open a feature request on the Dasharo issue tracker. Also, the integrated graphics initialization is only possible in UEFI environment currently, so heads would need to operate with a discrete GPU and preferably a discrete TPM.
Can features disabled by AGESA (such as memory encryption on consumer CPUs) be re-enabled?
The Phoenix platform uses AMD openSIL rather than AGESA for silicon initialization, which gives the Dasharo team considerably more visibility into and control over initialization parameters compared to a conventional AGESA-based firmware. However, certain features are blocked on the PSP firmware level, to which nobody except AMD (and possibly their closest partners) has access to.
Where AMD’s policy disables a feature in silicon configuration (such as TSME on non-PRO Ryzen), re-enabling it requires either AMD lifting the restriction or finding alternative configuration paths.
Where possible, we will commit to enabling the features, if not blocked by entities, which we have no control over.
It has to be noted, that currently, coreboot does not have support for changing any CPU or silicon initialization options. Most of the settings are hidden in APCB data files, which coreboot does not yet know how to modify. Everything is fixed configuration and it is not likely to change too soon.
What are the future development goals for the MSI PRO B850-P?
The immediate next steps after v0.9.0 are:
- Upstreaming the Phoenix SoC and MSI PRO B850-P mainboard code to coreboot upstream (Gerrit) and contributing the Phoenix-specific openSIL changes back to AMD’s openSIL project
- Fixing known issues: capsule staging across resets, power state restoration from G3, the Ubuntu 26.04 serial console boot hang, and the intermittent WiFi issue
- Pre-boot DMA protection: configuring the IOMMU during firmware POST, tracked in Dasharo issue #1880
- Suspend-to-idle / modern standby support, which requires significant ACPI work and detailed knowledge of the board GPIO topology.
AMD PSP and APCB configuration
Unlike Intel platforms which configure most of the features via Intel FSP UPD parameters, AMD platforms have their own design of passing configuration parameters - the APCB (AGESA PSP Configuration Block). While, openSIL takes a lot of parameters, many of them are just serving as a proxy to keep the BIOS code in sync with the APCB contents. In proprietary AGESA and UEFI implementations basing on AGESA, this is handled by setup variables and EDKII PCDs. The change in setup variable causes a change in APCB. Then the value of PCD is synced with the setup variable, and is used to finish configuring features that were already pre-initialized by PSP or to configure other features that depend on the current PCD/APCB value.
The aforementioned design makes most of the option depend on APCB and PSP. Unfortunately, coreboot does not have any means nor code to modify the APCB, nor it is prepared to do so in a graceful manner. APCB format is not publicly documented, nor the process to update it on runtime. Community expecting features, tunable options, and overclocking on AMD platforms, will have to cool down a bit, because none of this will be available anytime soon. It will require some redesign how the APCBs are integrated into coreboot.
We are not fond of the design, where so much depends on the PSP. While, this design let AMD publish so much silicon initialization code for x86, it does not offer much flexibility in tuning the platform or debugging what goes wrong. The overclocking is also done by a different entity, the SMU, another coprocessor living on the SoC beside PSP, responsible for power management.
Some references to the APCB format may be found on GitHub which could be potentially used to add an implementation in coreboot. We have a tracking issue here. Some overclocking commands for SMU were also revealed for AM4 platforms, but their applicability to AM5 is unknown.
Summary
Dasharo v0.9.0 for the MSI PRO B850-P WIFI is the first open-source firmware for a modern AMD Ryzen desktop platform, built on coreboot 25.12 and AMD openSIL for the Phoenix Zen 4 processor family. It delivers a comprehensive feature set including UEFI Secure Boot, AMD fTPM with ROM Armor 3, TCG OPAL disk passwords, fast boot via memory context restore, EZ Debug LED support, and full compatibility with Ubuntu LTS and Windows 11.
Four known issues remain: UEFI capsule staging across resets, power state restoration from S5, an Ubuntu 26.04 serial console boot hang, and intermittent WiFi card disappearance. None affect core platform functionality.
The firmware achieves a 79.1% reduction in closed-source code compared to
the vendor firmware E7E56AMSI.2A92, with the remaining proprietary content
limited to AMD PSP blobs for which no open-source alternative exists.
The firmware is available as part of the Dasharo Pro Package through the MSI PRO B850-P hardware-firmware bundle in 3mdeb’s shop.
Huge kudos to the NLnet Foundation for sponsoring the project.
